 Posted: Fri Jul 03, 2009 10:15 pm
Post subject: help please... |
 |
|
| I need help, im looking for a pair of 8" loudspeakers (dj speakers) for mids/"mid heights" for a gallary/everyday listening application for a cousin of mine. He already has a pair of mid bass speakers (dont know brand or model), the setup will be going into a b12. My question is what brand? something on par or of similar quality as rcf and the likes, and also what are key factors i should look for when selecting these speakers? |
|
| Back to top |
|
 |
|
|
|
Dj_Bee
Sweet on this forum
Joined: 08 May 2008
Tech posts: 324
Location: Causin DAMAGE
My 2NRide:
|
Posted: Fri Jul 03, 2009 10:20 pm
Post subject: |
|
|
it all come's down to how much you willing to spend.....
and you said that you already have a pair of mid bass speakers.....so you could probably go with a nice pair of drivers? |
|
| Back to top |
|
|
3stagevtec
punchin NOS
Joined: 12 Jul 2006
Tech posts: 4430
Location: killing two stones with one bird...
My 2NRide: Suzuki Grand Vitara
|
Posted: Fri Jul 03, 2009 10:23 pm
Post subject: |
|
|
if cost is a factor, i would strongly recommend the Audiopipe APMB 8.. they get pretty loud and sound great!
http://www.audiopipe.com/images/catalog/46.jpg
if you are looking for louder, look more towards the Italian brands.. |
|
| Back to top |
|
|
importzxtt
3NE 2NR for life
Joined: 28 May 2006
Tech posts: 155
Location: In front the computer
My 2NRide:
|
Posted: Fri Jul 03, 2009 10:28 pm
Post subject: |
|
|
| I understand it all comes down to how much im willing to spend but, i want to get some ideas so that i can find something that suits his needs. Im new to the whole dj speakers in car scene but im not a complete noob. and yes, the car already has a pair of midbass speakers what he wants now is a nice pair of drivers to get the mid frequencies as well as some other frequencies higher up in the scale. Basically something to fill in the frequencies hes missing. |
|
| Back to top |
|
|
importzxtt
3NE 2NR for life
Joined: 28 May 2006
Tech posts: 155
Location: In front the computer
My 2NRide:
|
Posted: Fri Jul 03, 2009 10:39 pm
Post subject: |
|
|
| 3stagevtec wrote: | if cost is a factor, i would strongly recommend the Audiopipe APMB 8.. they get pretty loud and sound great!
http://www.audiopipe.com/images/catalog/46.jpg
if you are looking for louder, look more towards the Italian brands.. |
True..  but thing is what makes this speaker (the audiopipe speaker) capable of reproducing the higher mid frequencies or not? Is there a "dj speaker" capable of reproducing a broad range of mid frequencies as well as higher frequencies in one? or is this only achievable by using a 3 way system (ie pair of midbass, pair of mids, bullet tweeters) |
|
| Back to top |
|
|
3stagevtec
punchin NOS
Joined: 12 Jul 2006
Tech posts: 4430
Location: killing two stones with one bird...
My 2NRide: Suzuki Grand Vitara
|
Posted: Fri Jul 03, 2009 10:40 pm
Post subject: |
|
|
Ciare has some pretty smooth sounding compression drivers..

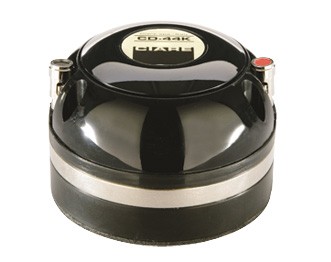

i have a pair of the CD44K comp drivers and love how they sound..

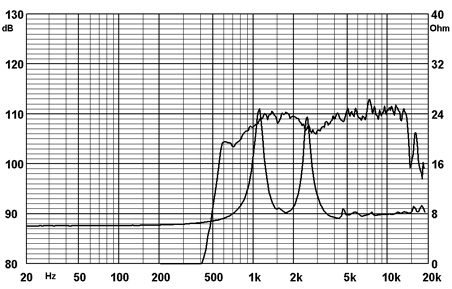

response graph
they perform best from 1500Hz up though.. |
|
| Back to top |
|
|
3stagevtec
punchin NOS
Joined: 12 Jul 2006
Tech posts: 4430
Location: killing two stones with one bird...
My 2NRide: Suzuki Grand Vitara
|
Posted: Fri Jul 03, 2009 10:45 pm
Post subject: |
|
|
| importzxtt wrote: | | 3stagevtec wrote: | if cost is a factor, i would strongly recommend the Audiopipe APMB 8.. they get pretty loud and sound great!
http://www.audiopipe.com/images/catalog/46.jpg
if you are looking for louder, look more towards the Italian brands.. |
True.. but thing is what makes this speaker (the audiopipe speaker) capable of reproducing the higher mid frequencies or not? Is there a "dj speaker" capable of reproducing a broad range of mid frequencies as well as higher frequencies in one? or is this only achievable by using a 3 way system (ie pair of midbass, pair of mids, bullet tweeters) |
you could use a pair of Passive crossovers coupled to both the, for example, APMB 8"s and the CDK44's to cover a wider range of frequencies..
take a look at a previous setup i had..
notice the passives on the back of the mid / high range box..
the advantage of using passives is you will not have any impedance - amp matching issues while using 2 pairs of speakers..  |
|
| Back to top |
|
|
importzxtt
3NE 2NR for life
Joined: 28 May 2006
Tech posts: 155
Location: In front the computer
My 2NRide:
|
Posted: Fri Jul 03, 2009 10:50 pm
Post subject: |
|
|
| 3stagevtec wrote: | Ciare has some pretty smooth sounding compression drivers..
i have a pair of the CD44K comp drivers and love how they sound..
response graph
they perform best from 1500Hz up though.. |
A Compression Driver is a type of loudspeaker driver which uses the technique of "compression" to achieve high efficiencies. In this context compression refers to the fact that the area of the loudspeaker diaphragm is significantly larger than the aperture through which the sound is radiated. Compression Drivers most commonly used in high sound pressure level applications. They are normally used in conjunction with Acoustical Horns. Horn-loaded Compression Drivers can achieve extremely high efficiencies compared to direct-radiating loudspeakers. They are almost universally used for high frequency reproduction in high power sound reinforcement loudspeakers.
^ Taken from wiki
I think i've found a solution to one of the problems!
but dont you also need to get the horn piece matched to the specific driver? How do i go about that?
If you dont mind me asking what does your system consist of? you can pm me if you like. |
|
| Back to top |
|
|
importzxtt
3NE 2NR for life
Joined: 28 May 2006
Tech posts: 155
Location: In front the computer
My 2NRide:
|
Posted: Fri Jul 03, 2009 10:55 pm
Post subject: |
|
|
| 3stagevtec wrote: | | importzxtt wrote: | | 3stagevtec wrote: | if cost is a factor, i would strongly recommend the Audiopipe APMB 8.. they get pretty loud and sound great!
http://www.audiopipe.com/images/catalog/46.jpg
if you are looking for louder, look more towards the Italian brands.. |
True.. but thing is what makes this speaker (the audiopipe speaker) capable of reproducing the higher mid frequencies or not? Is there a "dj speaker" capable of reproducing a broad range of mid frequencies as well as higher frequencies in one? or is this only achievable by using a 3 way system (ie pair of midbass, pair of mids, bullet tweeters) |
you could use a pair of Passive crossovers coupled to both the, for example, APMB 8"s and the CDK44's to cover a wider range of frequencies..
take a look at a previous setup i had..
notice the passives on the back of the mid / high range box..
the advantage of using passives is you will not have any impedance - amp matching issues while using 2 pairs of speakers.. |
Sweet! What made you want to change that setup? Would you say you were missing certain frequencies or was everything properly matched? |
|
| Back to top |
|
|
3stagevtec
punchin NOS
Joined: 12 Jul 2006
Tech posts: 4430
Location: killing two stones with one bird...
My 2NRide: Suzuki Grand Vitara
|
Posted: Fri Jul 03, 2009 11:05 pm
Post subject: |
|
|
you choose the horn for your compression driver by looking at it's dispersion range, frequency response range and throat entry diameter.
(i am having trouble accessing the 18sound website) but i am currently using the 18sound XT120 horn.
some specs on this horn..
Coverage: 90H x 60V
Size: 1-inch exit
Frequency Response: 1600-20kHz
Material: ABS
Crossover Frequency: 1500 Hz.
you can see the wide(ish) 90degree horizontal dispersion of the horn and it's freq range matches up quite nicely with the 1- 17 kHz freq range of the Ciare CD44k
http://oem.ciare.com/en/294/301/prodotti.php
a narrow dispersion range, like 45deg (H) by 45deg (V) will sound very loud when you stand directly in front of it, and have a steep roll off as you step to the side..
a wider dispersion range will cover more area, but sound slightly softer when you stand in front of it..
choose the dispersion range according to where you want it to be heard.. |
|
| Back to top |
|
|
3stagevtec
punchin NOS
Joined: 12 Jul 2006
Tech posts: 4430
Location: killing two stones with one bird...
My 2NRide: Suzuki Grand Vitara
|
Posted: Fri Jul 03, 2009 11:12 pm
Post subject: |
|
|
| importzxtt wrote: | | Sweet! What made you want to change that setup? Would you say you were missing certain frequencies or was everything properly matched? |
everything was perfectly matched.. the mid / high range enclosure effective freq range went from 120Hz up..
it sounded great! but as i had everything facing forward inside my vehicle, it sounded really soft on the outside, especially in a noisy car show environment..
as a daily setup, i would give it 8.5/10 |
|
| Back to top |
|
|
importzxtt
3NE 2NR for life
Joined: 28 May 2006
Tech posts: 155
Location: In front the computer
My 2NRide:
|
Posted: Fri Jul 03, 2009 11:16 pm
Post subject: |
|
|
 Thank you! A few hours ago I was completely lost now i am begining to see the light! |
|
| Back to top |
|
|
3stagevtec
punchin NOS
Joined: 12 Jul 2006
Tech posts: 4430
Location: killing two stones with one bird...
My 2NRide: Suzuki Grand Vitara
|
Posted: Fri Jul 03, 2009 11:54 pm
Post subject: |
|
|
| ^ no probs! |
|
| Back to top |
|
|
ruffneck_12
3NE 2NR for life
Joined: 04 May 2008
Tech posts: 198
Location: here
My 2NRide:
|
Posted: Sat Jul 04, 2009 12:00 am
Post subject: |
|
|
| 3stagevtec, wa freq u tune d mids box to in da vid? |
|
| Back to top |
|
|
3stagevtec
punchin NOS
Joined: 12 Jul 2006
Tech posts: 4430
Location: killing two stones with one bird...
My 2NRide: Suzuki Grand Vitara
|
Posted: Sat Jul 04, 2009 12:42 am
Post subject: |
|
|
| can't remember for sure, i think it was either 70 or 75Hz.. |
|
